400G OpenZR+ QSFP-DD DCO Coherent Optical Module SCFEC & CMIS 5.0

Product Categories
Color Optic Limited
Contact Now

400G OpenZR+ QSFP-DD DCO Coherent Optical Module SCFEC & CMIS 5.0

  • 1
  • 2

Brand Name : coloroptic

Model Number : C-QD4HCOZC

Certification : UL, TUV, CE, RoHS, REACH, CMRT

Place of Origin : China

MOQ : 2

Price : Negotiable

Payment Terms : TT, LC, Western Union

Supply Ability : 1000 pieces/month

Delivery Time : 7~15 days

Packaging Details : Plates with Carton

Data rate : 400G

Wavelength : Coherent

Distance : 480 km

Connector : Duplex CS

Form Factor : QSFP-DD

Temperature : 0~70°C

DDM : Yes

Protocals : MSA

Warranty : 3 years

Label : Can Be Customized

Protocols : CMIS5.0, OIF Coherent CMIS1.1, OpenZR+

Modulation Format : DP-16QAM CFEC

Contact Now

400G OpenZR+ QSFP-DD DCO w/7nm Marvell DSP & Flex Grid, SCFEC & CMIS 5.0

This is 400G QSFP56-DD ZR+ transceiver module is capable of transmission distances up to 480km and compliant to the OIF 400G ZR standard,and compliant to the Open ZR+ standard,it using the Silicon Photonics (SiPho) based optical engine and the latest DSP generation that enables 400G coherent transmission. The QSFP-DD form factor and CMIS5.1 support makes them suitable for transmission applications using Ethernet switch equipment.

Key Features
Full C-band 75GHz ITU-T transmitter
Built in client and line OTN processing
Low latency E-FEC Data rate up to 400Gbps
Support Client-side Interfaces: 1*400GAUI-8/4*100GAUI-2
Compliant with QSFP-DD MSA and 400GE
Transmission distance up to 480km
Integrated with EDFA
Duplex LC receptacles
Hot-pluggable electrical interface
Commercial operating case temperature range: 0℃ to 75℃
OpenZR+ Specifications, version 1.0, 4 September 2020
Application
400G Ethernet
Product Details
400G QSFP-DD ZR DCO
Features:
　
7nm Marvell DSP 　
C band:191.3 ~ 196.1THz, Flex Grid 　
Support Line side: 　

DP-16QAM OFEC

 　
Support Flexible client-side: 　
400GAUI-8/4*100GAUI-2 　
Compliant to CMIS5.0 Applications: 　
Compliant to OIF Coherent CMIS1.1 •OTN •DCI 　

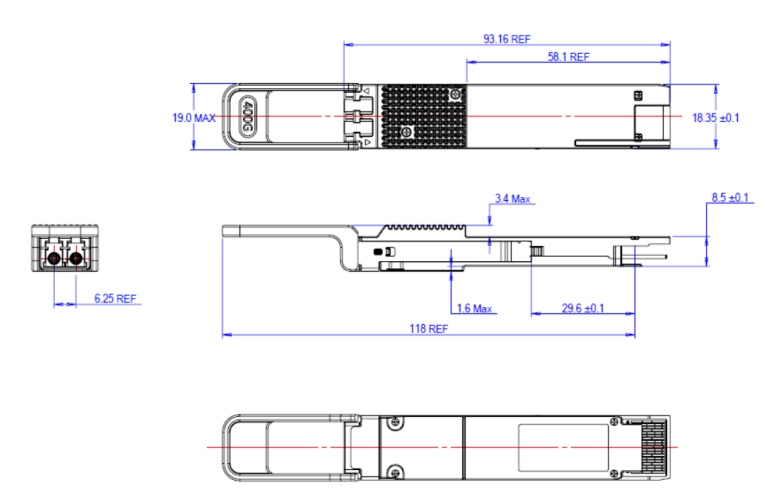

l Standard QSFP-DD type 2 form factor •Metro 　
l 76pin QSFP-DD MSA connector
l 0~70℃ case temperature 　
l Hot Swappable 　
　
Main Parameters: 　 　 　 　 　 　
Parameter Symbol Min Typical Max Units Note
Operating Case Temperature TOP 0 　 70 degC 　
Operating Input Optical Power of Signal Psig -12 　 0 dBm 　
Transmitter output power range Pout -10 -6
Frequency Range f 191.3 　 196.1 THz 　
Receiver Sensitivity SEN 　 -20 dBm 　
OSNR sensitivity OSNR 　 24 dB/0.1nm 　
Power Consumption 　 　 21 W 　
